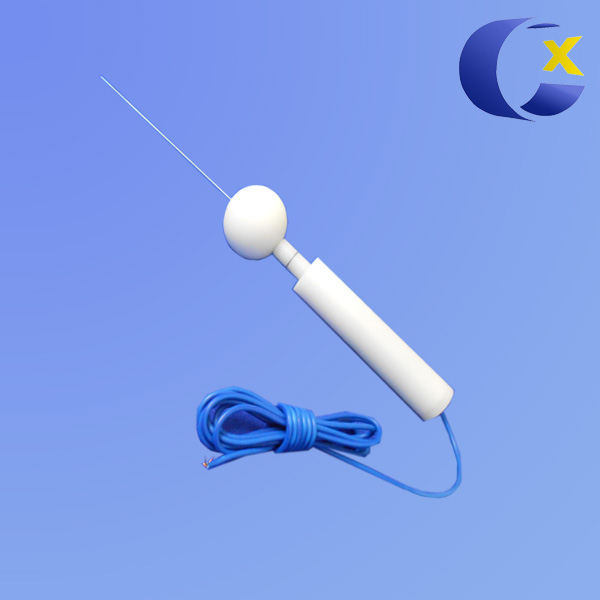

IEC60529 IP4X Test wire 1.0 mm diameter, 100 mm long

Basic Introduction:
1. According to: IEC 61032:1997 / IEC 60529:2001 / IEC 60065 / IEC 60598 and UL
2. IP4X Test Probe D ( Test Probe D) is the necessary tool to proceed protecting electric shock test of household and similar electrical appliances.

Technical parameters:

1. Wire length: 100 mm

2. Wire diameter: 1.0 mm

3. Circular-baffle diameter: 35 mm

4. Handle diameter: 10 mm

5. Handle length: 100 mm

6. According to IEC 61032 figure 4 (the Test probe D).

7. Thrust: 1N
